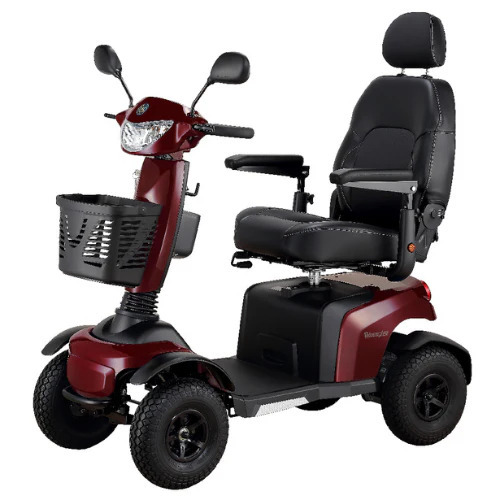

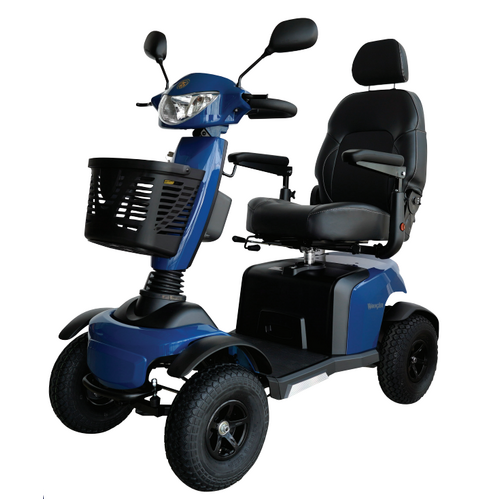

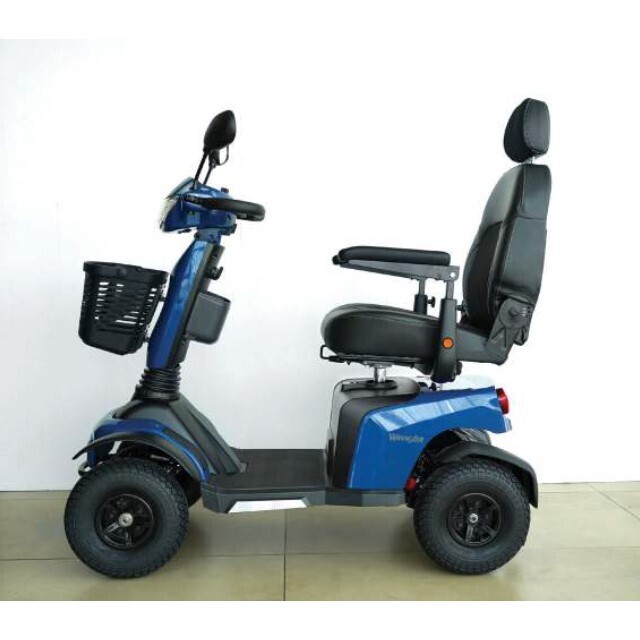

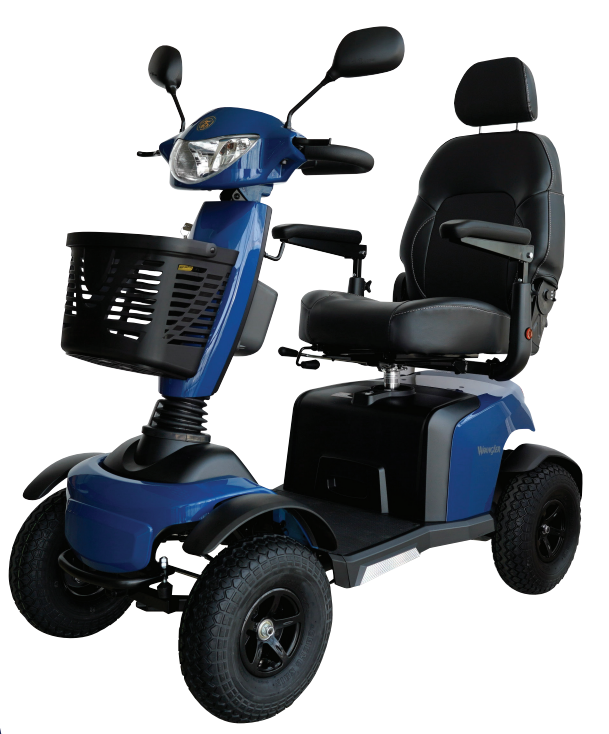

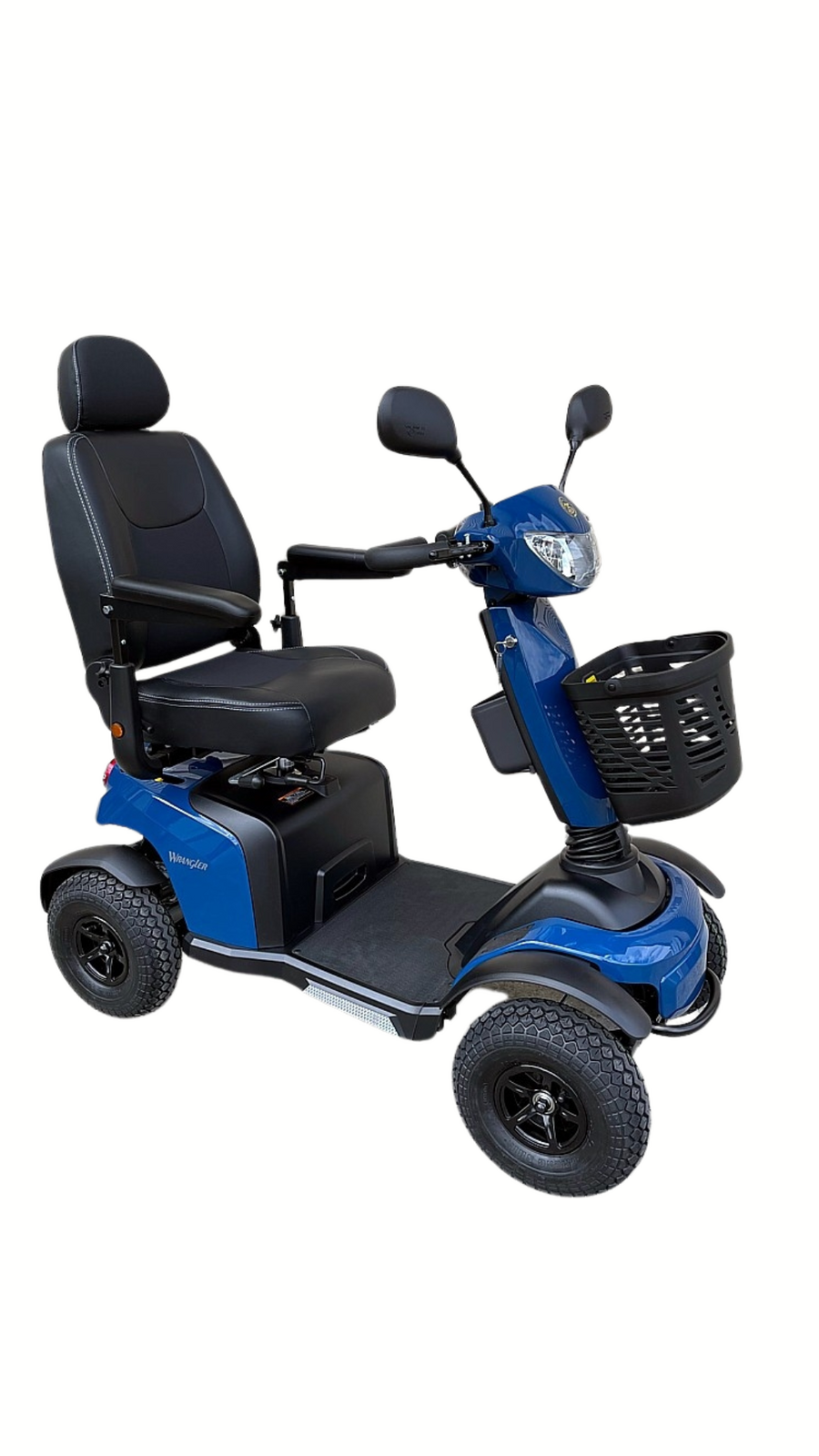

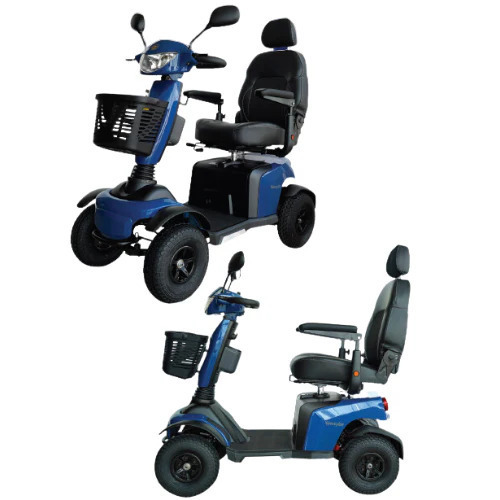

WRANGLER MOBILITY SCOOTER
Introducing the Merits Wrangler, a standout addition to the Merits mobility scooter lineup. Be among the first to own this elegant and stylish mobility scooter. The Merits Wrangler impresses with its sleek design, generous storage options, comfortable ride, and advanced digital LCD display. Safety features are top-notch, ensuring a secure and smooth experience, this model comes in a stunning color that truly stands out. With excellent ground clearance and effortless steering, navigating footpaths, shops, and parks has never been easier.

Features

• Multi-adjustable tiller for easy use and comfort

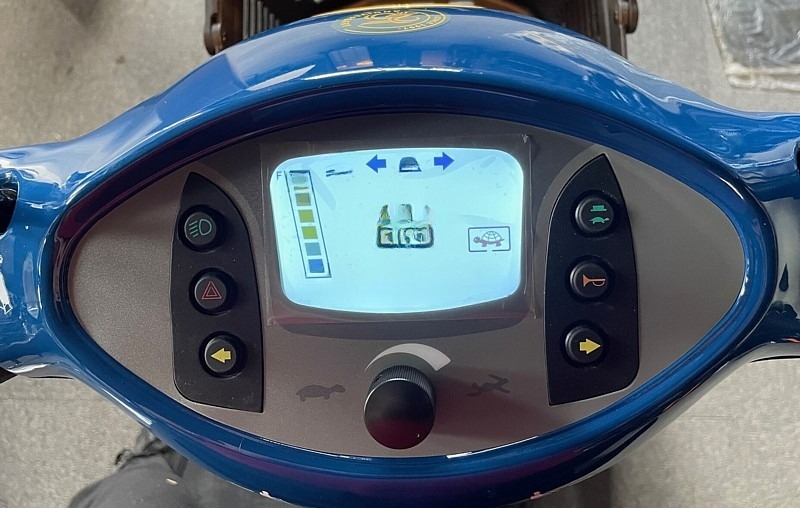

• The new modern LCD dashboard display offers clearer, easier to read battery gauge, speed & temperature.
• A built-in half speed safety switch operates automatically when turning to provide extra safety.
• Large 12” wheels which provide extra ground clearance.
• Adjustable suspension for maximum comfort
• 4 pole motor and large controller delivering much more power for climbing steep driveways or hills.
• Headlight and rear taillights, indicators front, and rear and reverse warning makes this scooter suitable for all occasions.

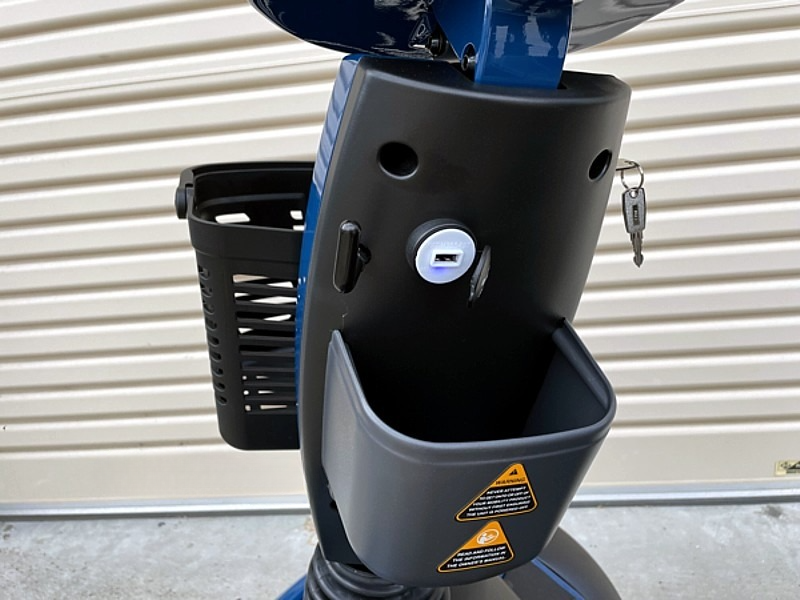

• With a new easy to access 12-volt socket

Specifications

• Max Speed: 10kph/6.25mph
• Range: 30-40km/20-27mi
• Turn Radius: 150cm/59″
• Ground Clearance: 12cm/4.7″
• Motor: DC 24V, 400W (Rating)/1750W (Max)
• Controller: Rhino 2 120A
• Battery: 12V/40-50A/H x 2pcs
• Charger: 4A off-board
• Gradient: 8°
• Front Wheel: 12” pneumatic
• Rear Wheel: 12” pneumatic
• Brake: intelligent, regenerative, electromagnetic brakes

Dimensions

• Overall Length/Width/Height 129 x 61 x 128cm
• Seat 46cm wide
• Seat height from ground 64-71 cm
• Seat Height from deck 43-49cm
• Wheel Base 95cm
• Base 52kgs
• Batteries (ea) 14kgs
• Seat 18kgs
• Total weight with battery 100kgs
• Max weight carrying capacity 159kgs
