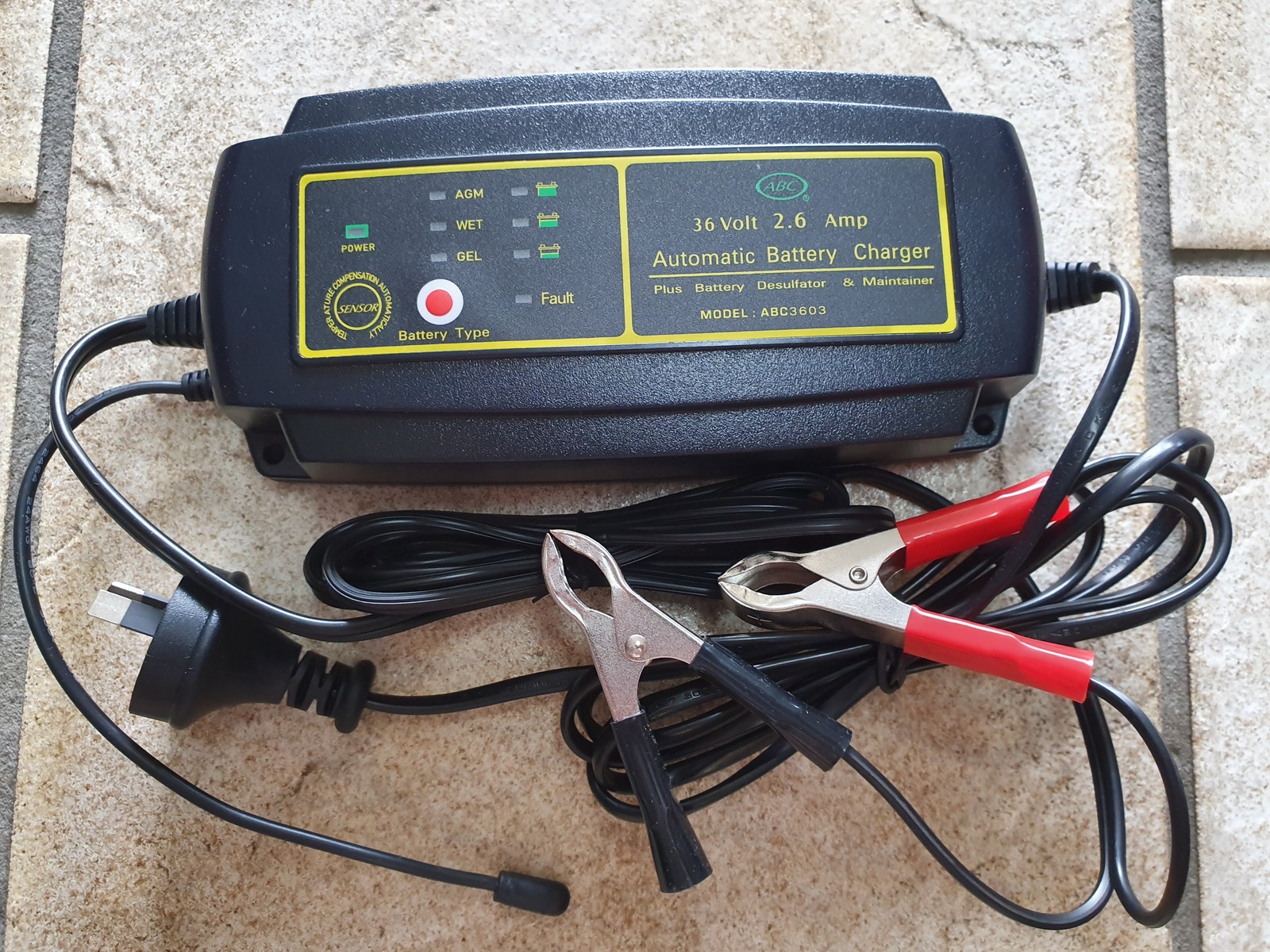

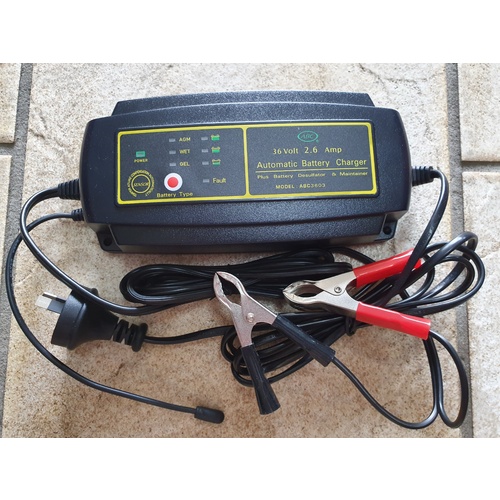

Automatic Battery Charger 36V 2.6 Amp Auto

Automatic Battery Charger - Automatic (ABC3603)

Overcharging is one of the most common causes of shortened battery lifespans. Mobility scooter batteries will tend to reach capacity (from empty) over the course of around 8 hours.

Most battery chargers need to be disconnected once they are full to avoid battery damage.

Scooters & Mobility provide a range of battery chargers that can be left on overnight without damaging your battery life.

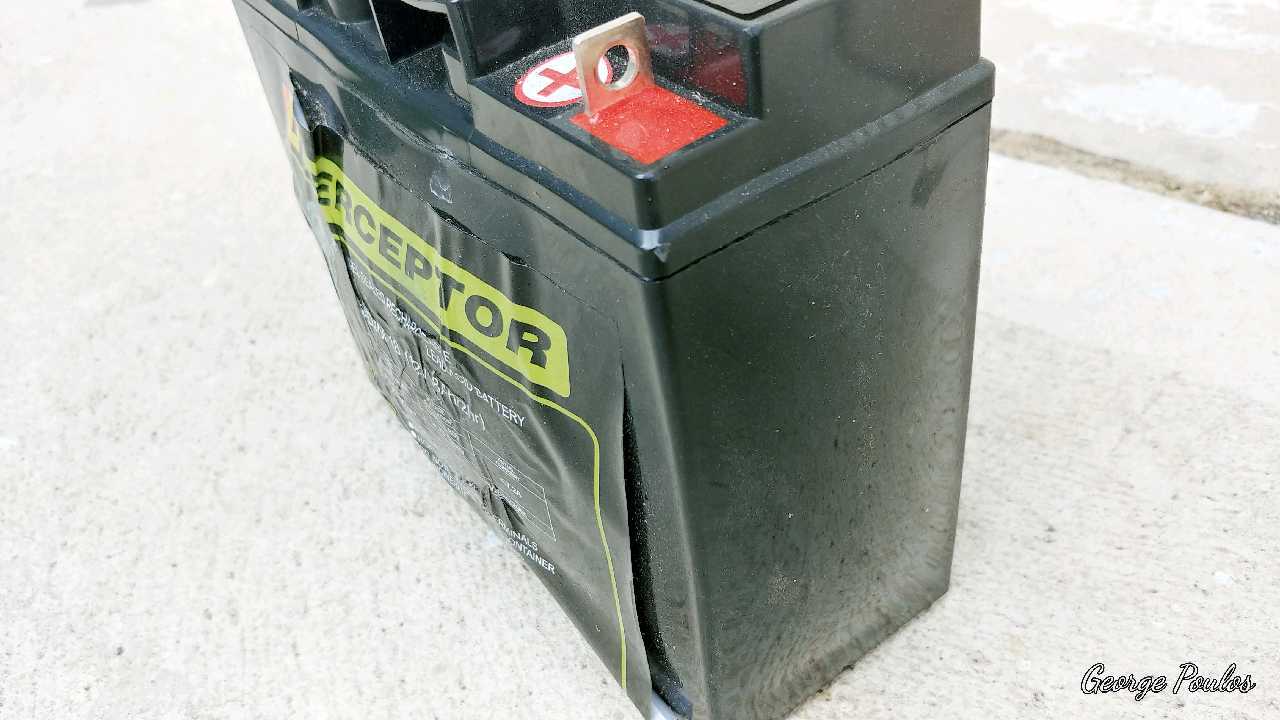

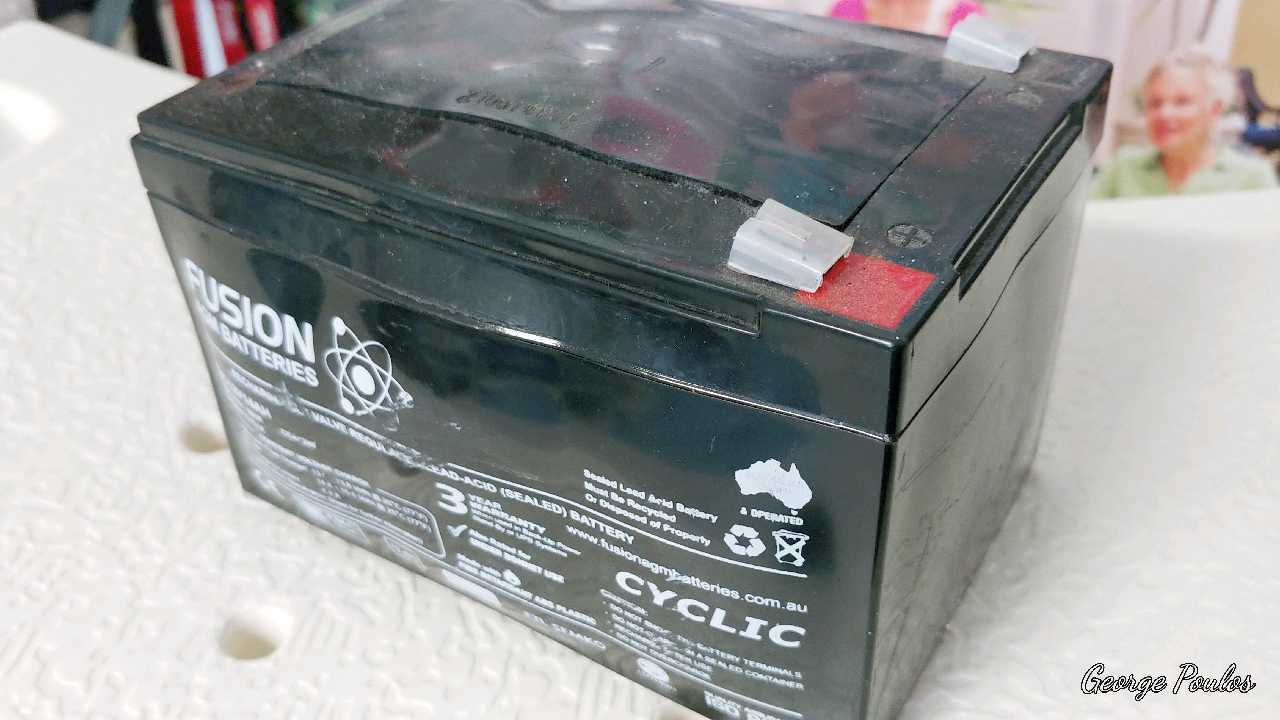

(See attached photos - caused by a normal charger)



• 36V 2.6 Amp
• Automatic Battery Temperature Compensation
• Temperature Probe Built-In



This Automatic Battery Charger comes packed with features but is simple to use.

Suited to all Lead Acid type batteries (GEL, WET, Sealed, AGM, Calcium).



General Features

• High efficiency (greater than 85%)
• Without the need for a fan
• No noise charging
• Suitable for various batter types
• Automatic battery temperature compensation - for extending battery life
• Lower battery voltage start to charging - can charge a severely discharged or heavily sulfated battery
• Seven stage charging process - automatically recondition the battery
• Recover the capacity of old batteries
• Reverse polarity protection, short circuit protection, spark free contact
• Ultra low input power consumption for stand by mode
• Easy to use - clear charging status display, no technical experience required
• Fully controlled by microprocessor
• Heavy duty cables
• Corrosion resistant output connectors
• Can be wall mounted - 4 screw holes



Multi Charge Stages

• Battery desulphation charging
• Soft start charging
• Bulk charging
• Absorption charging
• Battery analysis
• Recondition charging
• Float charging
• Long term maintenance charging



Battery Capacity:

Charge Current	1A	2A	2.6A	4A	8A
Battery Capacity: Charging (AH)	4-20	6-40	8-50	10-80	40-160
Battery Capacity: Maintaining (AH)	4-30	6-60	8-80	10-100	40-200



Technical Specifications:

Model	12V 8A	24V 4A	36V 2.6A	48V 2A
Type	Smart & Automatic	Smart & Automatic	Smart & Automatic	Smart & Automatic
Input (UL Version)	115Vac 50/60Hz	115Vac 50/60Hz	115Vac 50/60Hz	115Vac 50/60Hz
Input (CE Version)	220-240 Vac 50/60Hz	220-240 Vac 50/60Hz	220-240 Vac 50/60Hz	220-240 Vac 50/60Hz
Output Voltage	12V	24V	36V	48V
Output Current	2 / 4 / 8 Amp	1 / 2 / 4 Amp	2.6A	2A
Output Volt at no load	<0.5V	<0.8V	<1.0V	<1.5V
Minimum Start Volt	>2.0V	>4.0V	>6.0V	>8.0V
Temperature Compensated	-24mV / C	-48mV / C	-72mV / C	-96mV / C
Size (L*W*H)	205*90*52 (mm)	205*90*52 (mm)	205*90*52 (mm)	205*90*52 (mm)
Net Weight	850g	850g	850g	850g
Approval	FCC & CE	FCC & CE	FCC & CE	FCC & CE
