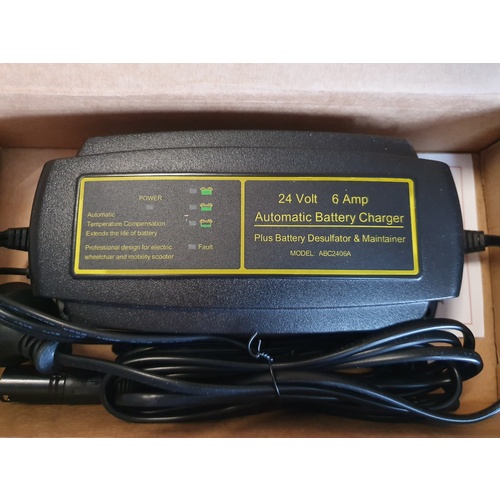

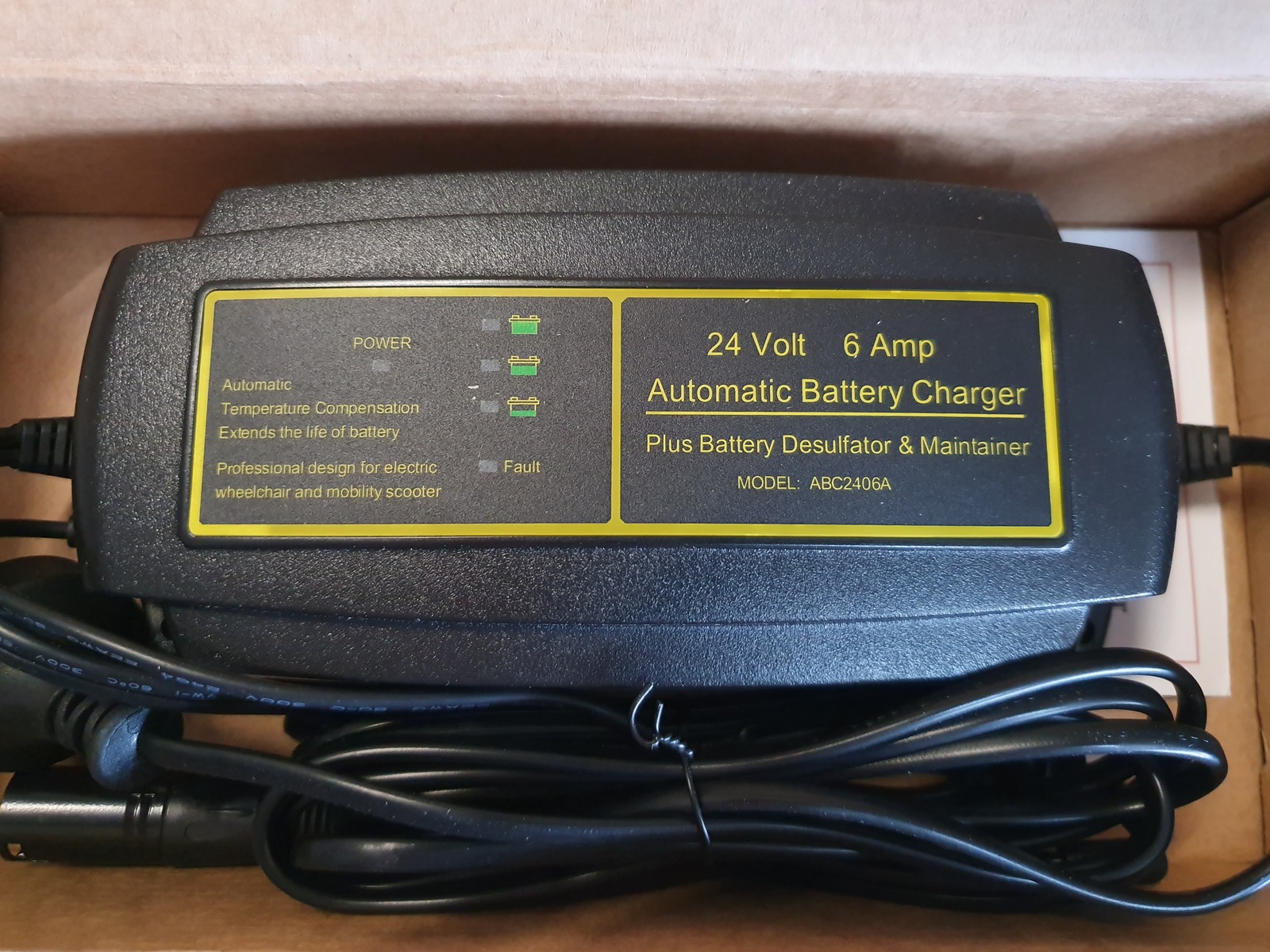

Automatic Battery Charger 24V 6 Amp Auto

Automatic Battery Charger - Automatic (ABC2406A)

Overcharging is one of the most common causes of shortened battery lifespans. Mobility scooter batteries will tend to reach capacity (from empty) over the course of around 8 hours.

Most battery chargers need to be disconnected once they are full to avoid battery damage.

Scooters & Mobility provide a range of battery chargers that can be left on overnight without damaging your battery life.

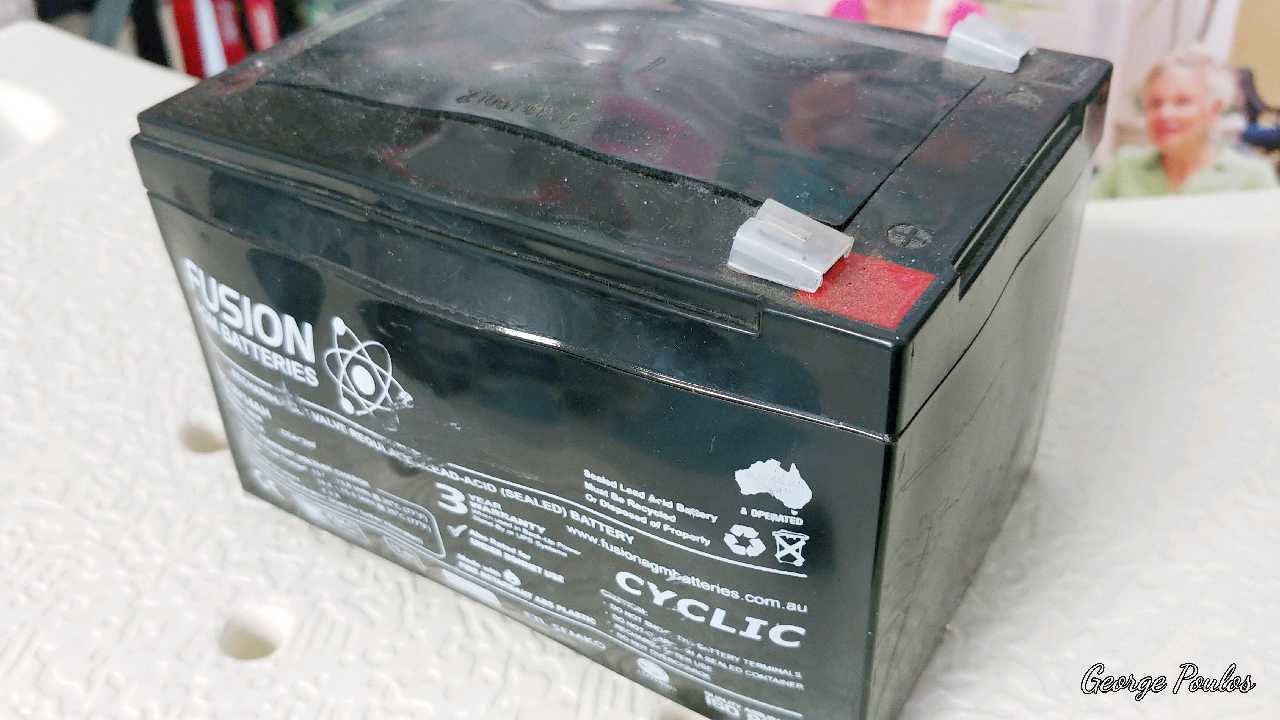

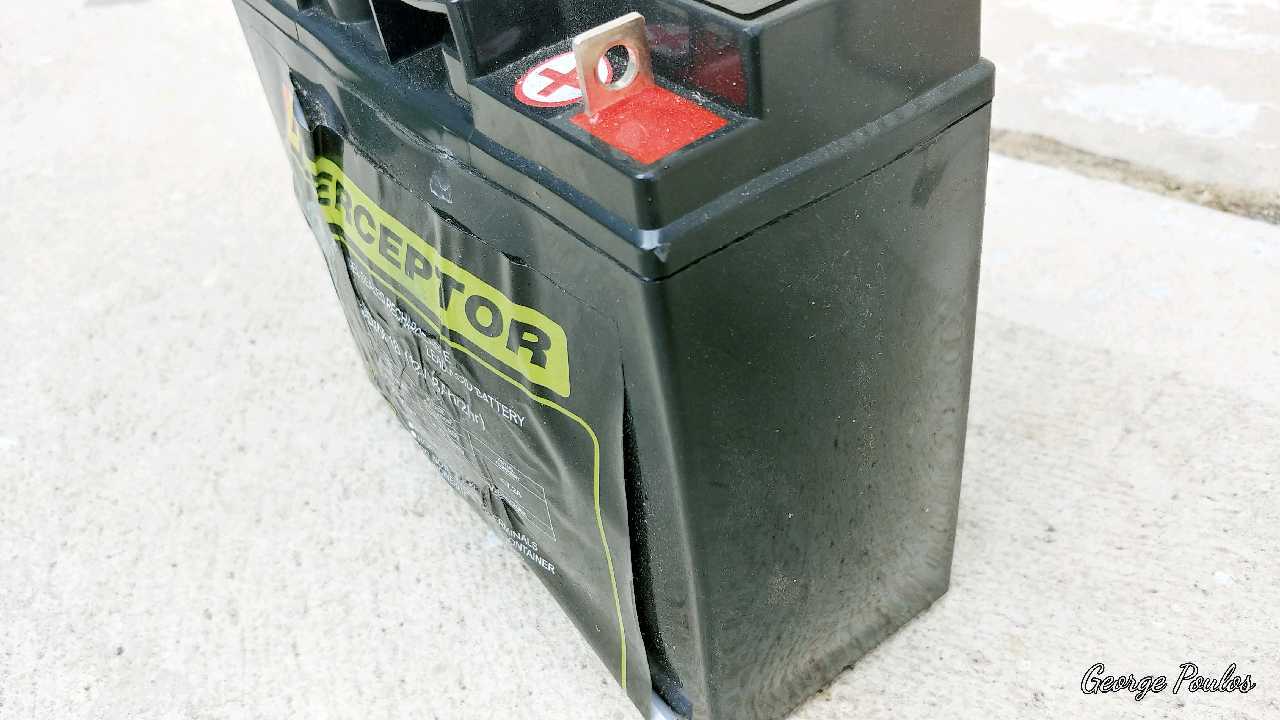

(See attached photos - caused by a normal charger)



• 24V 6 Amp
• Automatic Battery Temperature Compensation
• Temperature Probe Built-In



This Automatic Battery Charger comes packed with features but is simple to use.

Suited to all Lead Acid type batteries (GEL, WET, Sealed, AGM, Calcium).



General Features

• High efficiency (greater than 85%)
• Without the need for a fan
• No noise charging
• Suitable for various batter types
• Automatic battery temperature compensation - for extending battery life
• Lower battery voltage start to charging - can charge a severely discharged or heavily sulfated battery
• Seven stage charging process - automatically recondition the battery
• Recover the capacity of old batteries
• Reverse polarity protection, short circuit protection, spark free contact
• Ultra low input power consumption for stand by mode
• Easy to use - clear charging status display, no technical experience required
• Fully controlled by microprocessor
• Heavy duty cables
• Corrosion resistant output connectors
• Can be wall mounted - 4 screw holes



Multi Charge Stages

• Battery desulphation charging
• Soft start charging
• Bulk charging
• Absorption charging
• Battery analysis
• Recondition charging
• Float charging
• Long term maintenance charging



Battery Capacity:

Charge Current	2A	3A	5A	6A	10A
Battery Capacity: Charging (AH)	4-15	6-30	16-40	31-120	41-200
Battery Capacity: Maintaining (AH)	4-20	6-40	21-60	41-150	61-240



Technical Specifications:

Model	12V 10A	24V 6A	36V 3.5A	48V 2.5A
Type	Smart & Automatic	Smart & Automatic	Smart & Automatic	Smart & Automatic
Input (UL Version)	115Vac 50/60Hz	115Vac 50/60Hz	115Vac 50/60Hz	115Vac 50/60Hz
Input (CE Version)	220-240 Vac 50/60Hz	220-240 Vac 50/60Hz	220-240 Vac 50/60Hz	220-240 Vac 50/60Hz
Output Voltage	12V	24V	36V	48V
Output Current	2 / 5 / 10 Amp	1 / 3 / 6 Amp	3.5A	2.5A
Output Volt at no load	<0.5V	<0.8V	<1.0V	<1.5V
Minimum Start Volt	>6.0V	>12.0V	>18.0V	>24.0V
Temperature Compensated	-24mV / C	-48mV / C	-72mV / C	-96mV / C
Size (L*W*H)	205*90*52 (mm)	205*90*52 (mm)	205*90*52 (mm)	205*90*52 (mm)
Net Weight	900g	900g	900g	900g
Approval	SAA,CE,FCC	SAA,CE,FCC	SAA,CE,FCC	SAA,CE,FCC
